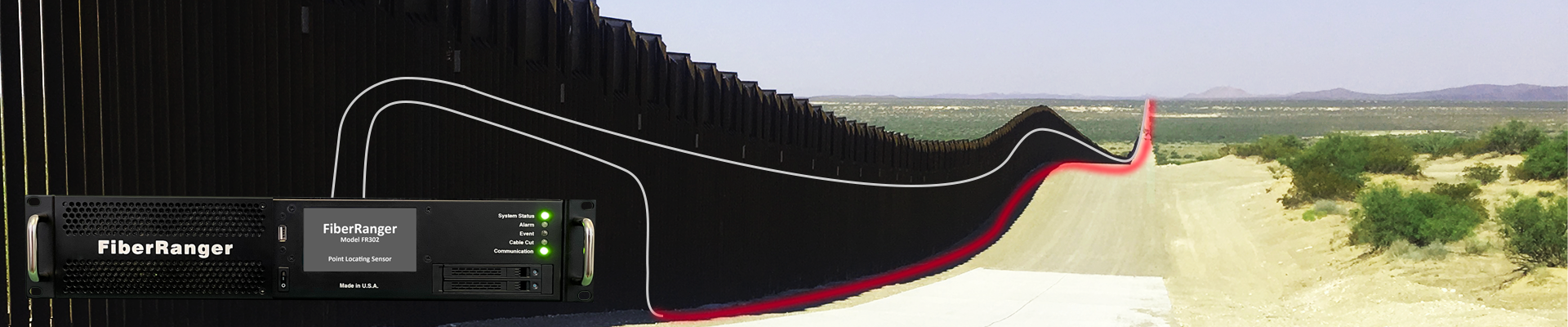

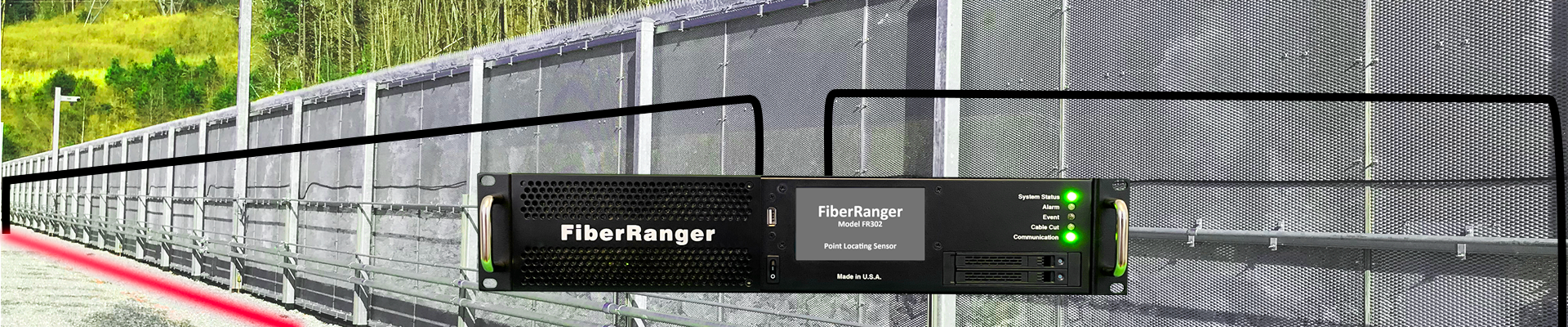

Fence and Buried Perimeter Security (Hybrid)

Depending on the range, models FR302-Class, FR301, and FR202-Hybrid can be used for hybrid installations involving both fence and buried perimeters using fiber-optic sensors.

100% Redundant Configuration for Reliability

Groundbreaking 100% redundant configuration designed from the bottom up to provide the highest reliability in the market. The redundant configuration uses either two FR202-Hybrid systems or two FR301 systems. Each system is hot swappable, and automatically turns on when the other system fails.

Small Form Factor

Smallest form factor in the market. A complete redundant configuration with two FR202-Hybrid units take only 2U of space. One FR301 system also takes 2U of space. In addition to occupying less rack space, shipping and handling are made easy.

Simple Installation and Maintenance Free

The system is easy to install, calibrate, and tune. Zones are configured using software, adding flexibility to an installation. No electrical power required in the field, and can be installed on most types of fences and soil types. Once installed, maintenance is low.

Long Range and High Location Accuracy

Long Range (up to 80 km per system, up to 40 km each sensor) with pinpoint location accuracy of +/- 6 m. The system has 2 sensors.

Cut Immunity

System is immune to a cable cut when installed in a loop configuration. Each sensor detects up to the point of a cut.

Advanced Signal Processing

Algorithms use pattern recognition for Classification and advanced background rejection leading to superior Probability of Detection and a low nuisance alarm rate.

Advanced Features

GPS mapping of site perimeter, detection of multiple simultaneous events, remote connectivity, and remote troubleshooting.

Immunity

The sensor is based on fiber-optic cable, which is Immune to EMI / RFI and lightning.

Certification

FCC Part 15 Subpart B Class A, CE (EMC Directive 2014/30/EU), ROHS.

FiberRanger provides a range of fiber-optic sensor products to protect fence or hybrid fence/buried perimeters to give flexibility of deployment. The ranging products (FR302-Class, FR301, and FR202-Hybrid) can detect, classify, and precisely locate an intrusion to within a few meters. Buried sections can be tuned independently of the fence sections. All products use advanced artificial intelligence and pattern recognition capabilities to bring the highest probability of detection and lowest nuisance alarm rate in the industry. Intelligent background rejection removes the effect of undesirable factors such as wind, rain, thunder, vehicles, trains, planes, etc. In addition, the User Interface is developed to be intuitive and user friendly with a high degree of automation.Special attention was given to the reliability of the system, including cut immunity and 100% redundancy.
