FR302-Classification

Classification System

The system classifies intrusions as fence climbs, fence cuts, footsteps, manual digging, machine digging, activity, pipeline leak, Engine, Vehicle, and train.

Long Range and High Location Accuracy

Long Range (up to 100 km per system, up to 50 km each sensor) with pinpoint location accuracy of +/- 6 m. The system has 2 sensors.

Small Form Factor

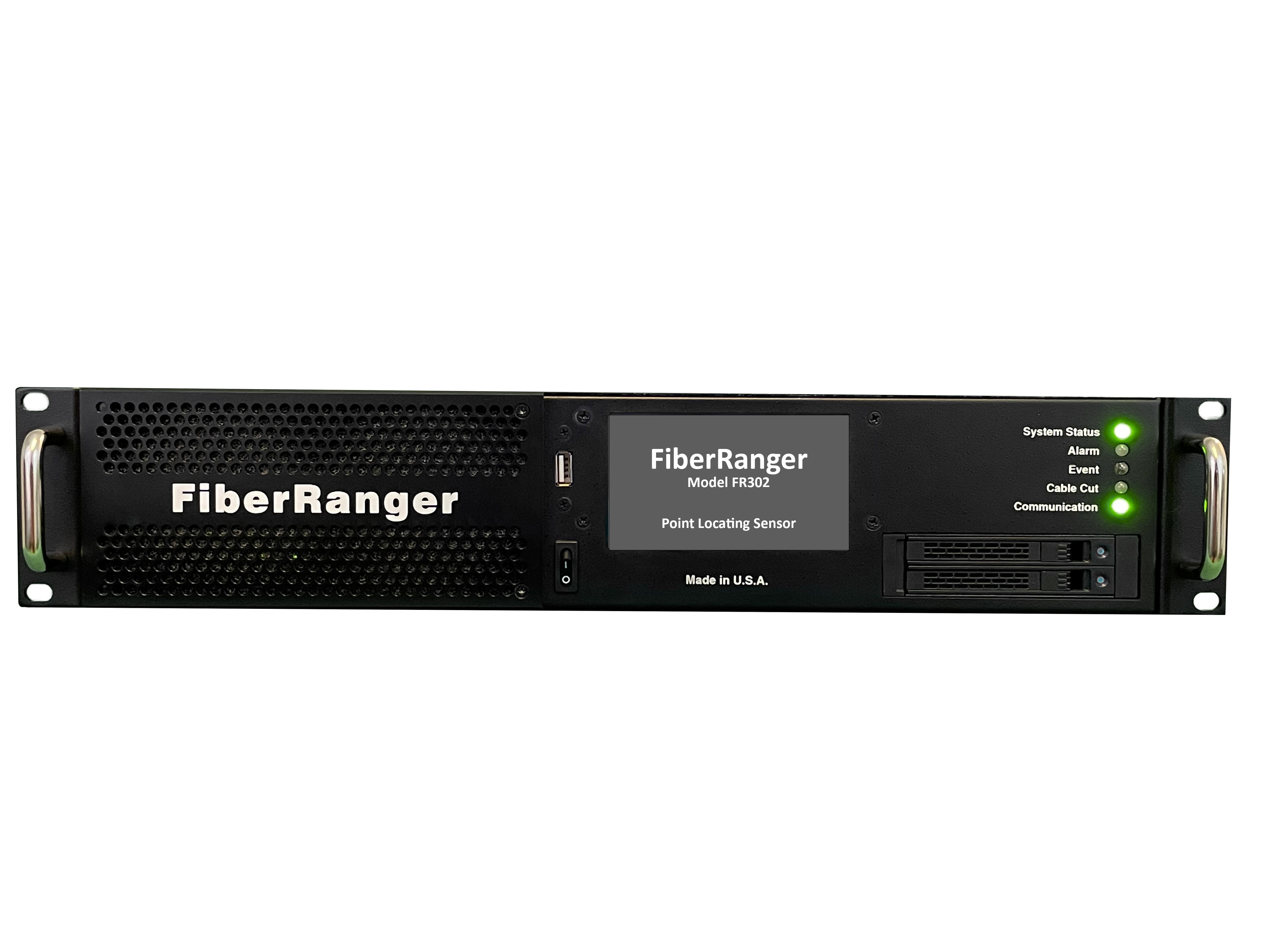

Smallest form factor in the market. One FR302 system takes only 2U of rack space. A complete redundant configuration with two FR302 systems take only 4U of space. In addition to taking up less rack space, shipping and handling is made easy.

Simple Installation and Maintenance Free

Easy to install, calibrate, and tune. Zones are configured using software, adding flexibility to an installation. No electrical power required in the field, and can be installed on fences, wall tops, data cables, along pipelines, or buried in ground. Once installed, maintenance is extremely low.

Cut Immunity

The system is immune to a cable cut when installed in a loop configuration. Each sensor detects up to the point of a cut.

Advanced Signal Processing

Algorithms use pattern recognition for Classification and advanced background rejection leading to superior Probability of Detection and a low nuisance alarm rate.

Advanced Features

GPS mapping, detection of multiple simultaneous events, remote connectivity, and remote troubleshooting.

Immunity

The sensor is based on fiber-optic cable, which is Immune to EMI / RFI and lightning.

Certification

FCC Part 15 Subpart B Class A, CE (EMC Directive 2014/30/EU), ROHS.

FR302-Classification is a ranging product that can detect, classify, and precisely locate an intrusion to within a few meters. It uses advanced artificial intelligence and pattern recognition capabilities to bring the highest probability of detection and lowest nuisance alarms rate in the industry. Intelligent background rejection removes the effect of undesirable factors such as wind, rain, thunder, vehicles, trains, planes, etc. In addition, the User Interface is developed to be intuitive with a high degree of automation to make it highly user friendly. Special attention was given to the reliability of the system, including cut immunity and a designed 100% redundancy. FR302 can be used on most flexible and rigid fence perimeters, pipelines, data cables, wall tops, or buried perimeters. Lead-in capabilities allow for sensing to start right where needed, while the system is installed inside a controller room. Installation, calibration, and tuning are simple and intuitive.
