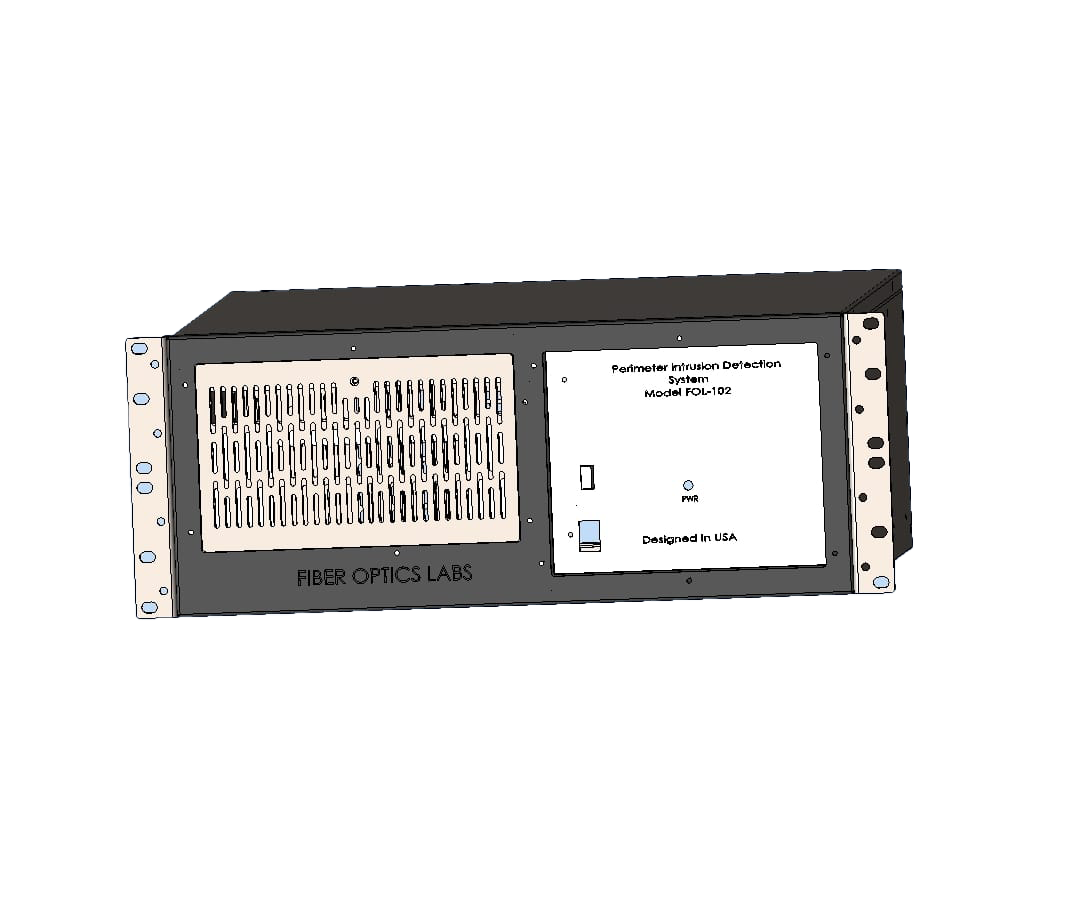

FOL-102

FOL-102 system offers up to 32 zones and a maximum range of 10 km, where each zone can be up to 500 m in length. FOL-102 system is a low-complexity sensor that is easy to install, configure, and tune, yet remains sensitive and reliable. The installation of the cable on the fence is quick and simple. . The insensitive lead can be up to 20 km, which allows the FOL-102 system to be located in a controller room far from the sensing zones.

System Detection

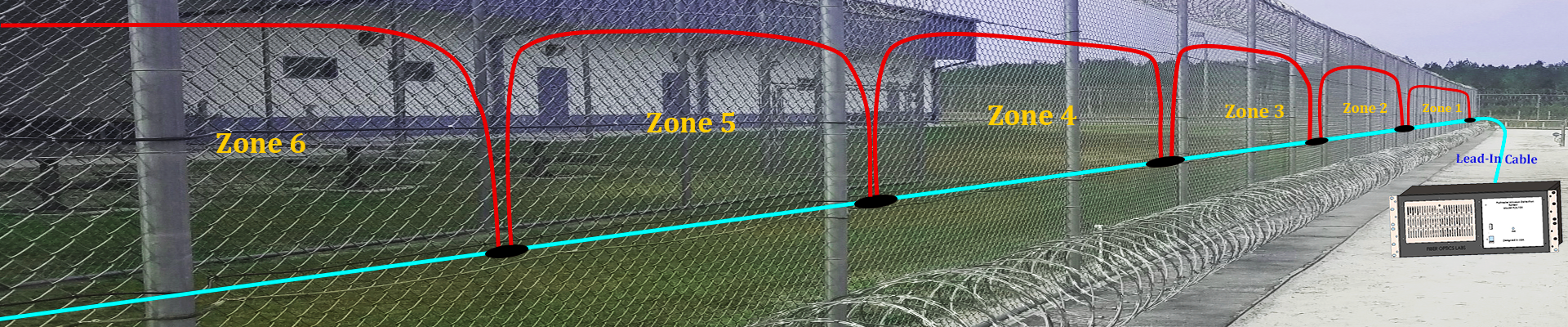

FOL-102 system supports up to 32 zones and a maximum range of 10 km. For each zone, the maximum zone length is 500 m and insensitive lead-in length is 20 km.

Simple Installation and Maintenance Free

Easy to install, calibrate, and tune. No electrical power required in the field, and can be installed on most types of fences. Once installed, maintenance is extremely low.

Advanced Signal Processing

Uses sophisticated algorithms for classification and advanced background rejection leading to superior Probability of Detection and a low nuisance alarm rate.

Advanced Features

Site maps and monitoring, remote connectivity, and remote troubleshooting.

Immunity

The sensor is based on fiber-optic cable, which is immune to EMI / RFI and lightning.

Certification

FCC Part 15 Subpart B Class A, CE (EMC Directive 2014/30/EU), ROHS.

The FOL-102 is easy to install and can detect an intrusion within a zone, while providing high detection sensitivity and classification capabilities. It uses advanced algorithms and background rejection to bring the highest probability of detection and lowest nuisance alarm rate in the industry for a zone system. Intelligent background rejection removes the effect of undesirable factors such as wind, rain, thunder, vehicles, trains, planes, etc. In addition, the User Interface is developed to be intuitive and with a high degree of automation to make it highly user friendly. FOL-102 can be used on most flexible and rigid fence perimeters. Lead-in capabilities allow for sensing to start right on the fence while the system is installed inside a controller room.
